Make it easy to bore and insert hardware efficiently for system and hinge connections.
Maksiwa HBM. 1000
$3,499.00

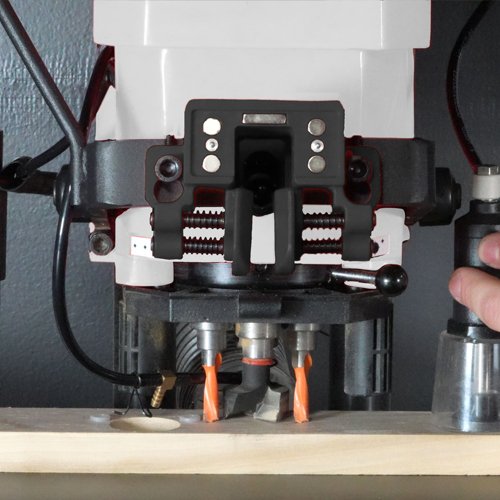

Hinge Boring Machine
Maksiwa HBM. 1000
$3,499.00
Hinge Boring Machine
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
| Weight | 110 lbs |
|---|
Technical Specs
| Electrical specs | 1 Phase – 110V 13.6 AMPS / 220V 6.8 AMP |
| Motor Specs | 1 HP / 1.1 KW 3400 RPM |
| Table Size | 18” x 31 – 1/2” | 460 x 800 MM |
| Machine table height | 5 – 3/8” 136MM |
| Machine table depth | 2- 3/4” 70MM |
| Hinge boring Bit Diameter | Carbide Tipped – 35mm |
| Hinge boring Bit Rotation | Right |
| Hinge boring shank | 10MM |
| Hinge boring Length | 57MM |
| Drill bits Diameter | Carbide Tipped – 8MM |
| Drill boring Bits Rotation | Left |
| Drill boring shank | 10 MM |
| Machine Dimensions (LxWxH) | 33 7/16”x 28 3/8”x31 1/2” | 850mmx720mmx800mm |
| Number of Stops | 2 Left / 2 Right |
| Maximum Depth of Stroke | 4 – 5/16” | 110MM |
| Boring distance center spindle | 0 – 2 3/4” | 0 – 70 MM |
| Air requirement | 90 PSI – 3 SCFM |
| Machine Weight | 50Kg 110LBS |
| Avg Noise emissions | 78dB |
