$55,630.00

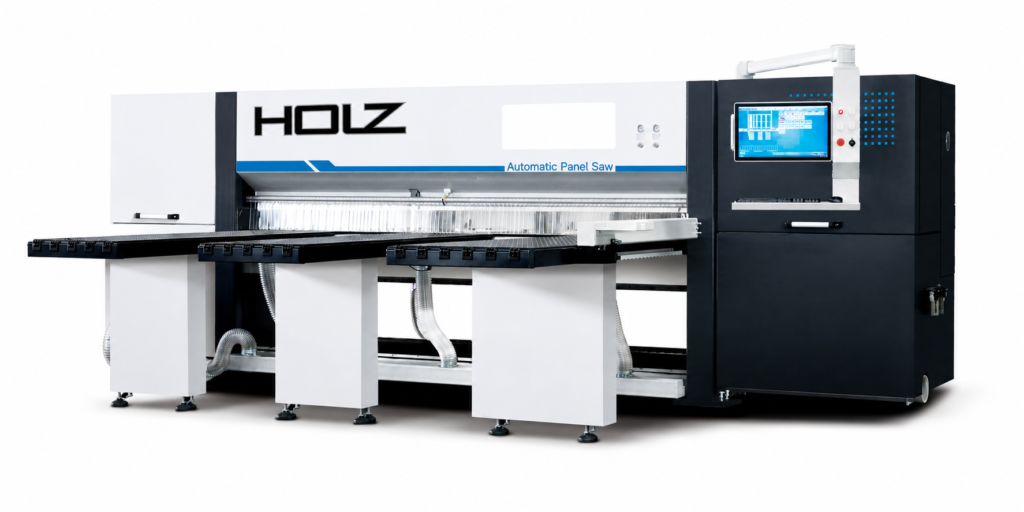

Heavy Duty Automatic Beam Saw
$55,630.00
Heavy Duty Automatic Beam Saw
Heavy Duty Beam Saw available in 10′ or 12′ Cutting Length
With Built in Optimization software now and a modern design.
New Touch Screen Controller

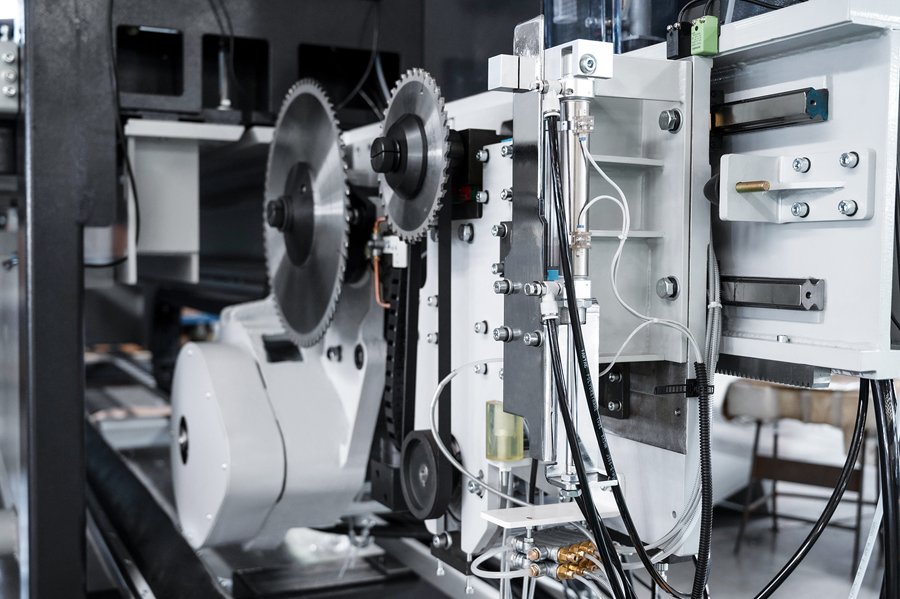

Automatic Scoring Adjustment

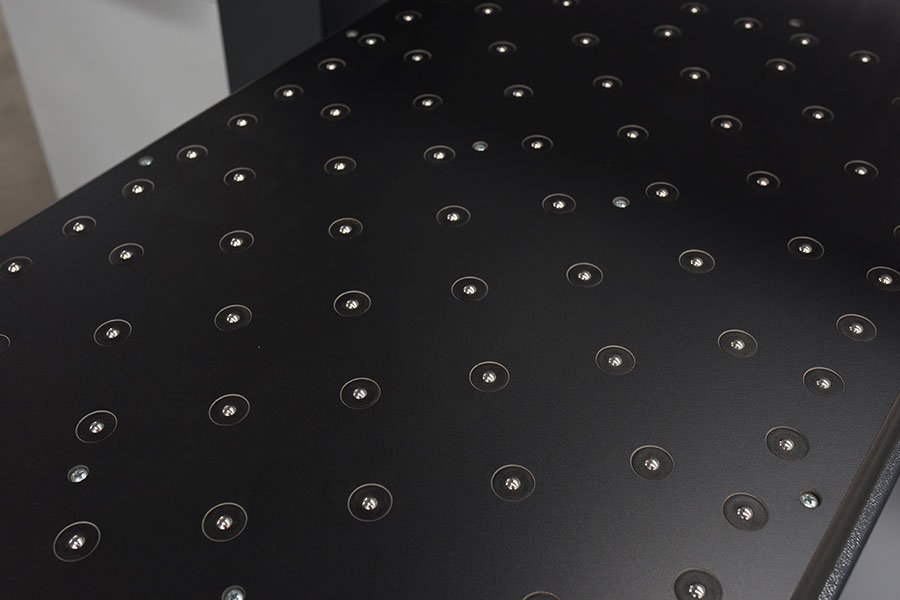

Air Flow Table

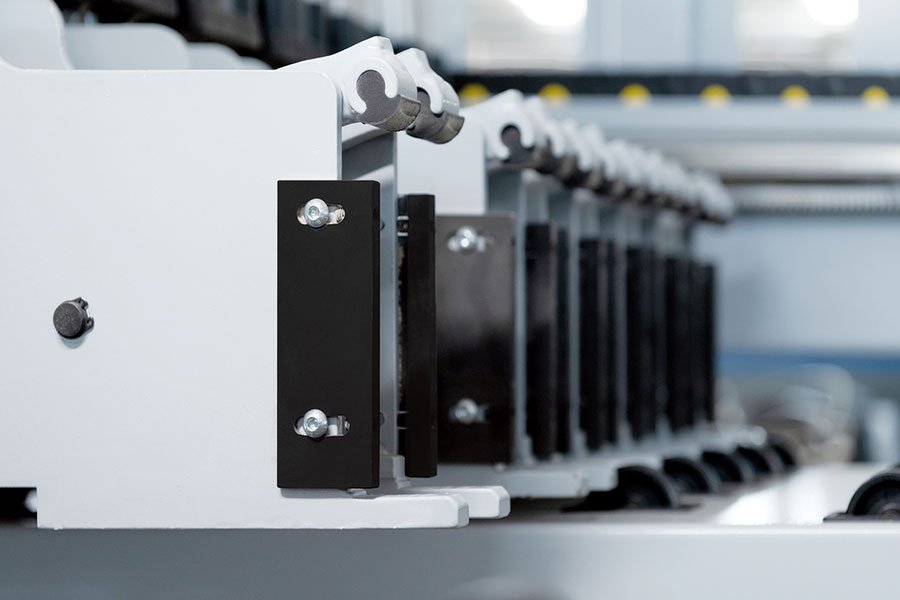

Rack & Pinion Guides

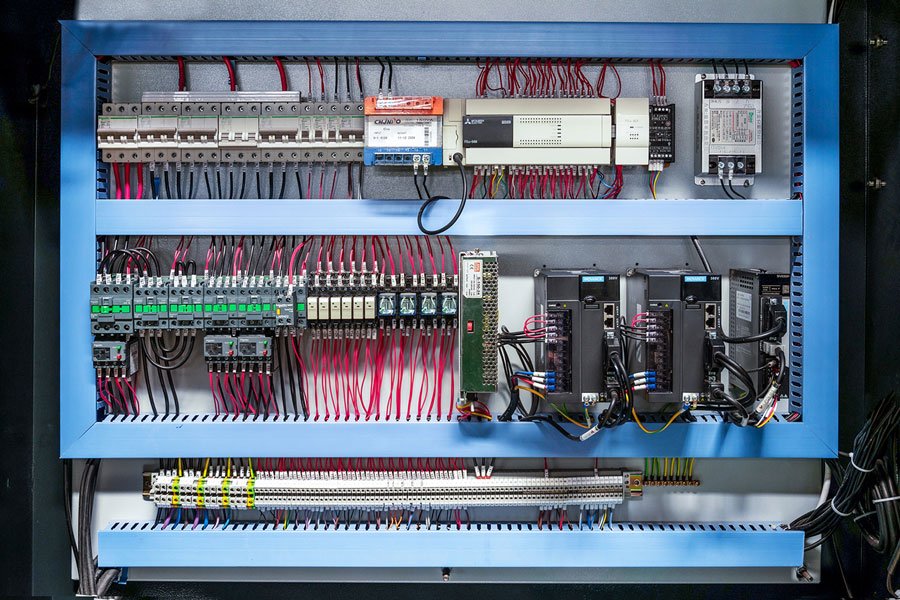

Schneider Components and Mitsubishi PLC
|
Model name |
ABS 3200 |
|
Max. Cutting size (L*W*T) |
3200×3100×90/120mm |
|
Max. Cutting Speed |
105m/min |
|
Max. Feeding speed |
85m/min |
|
Dia. Of Main Saw |
∮400mm/MAX∮450mm |
|
Dia. Of scoring saw |
∮200mm |
|
Main saw motor power |
25 Hp |
|
Scoring saw motor power |
3 Hp |
|
Feeding servo motor power |
2 Hp |
|
Saw carriage servo motor |
2 Hp |
|
Working air pressure |
7bar |
|
Main motor speed |
4500rpm |
|
Min. Speed of dust collection |
3200 CFM |
|
|
|
|
Net weight |
$10,802 |
