Fully Loaded CNC router for all day production. Can be sold as a cell or standalone machine. All top sourced components including Becker Vacuum Pumps, Hiteco 12hp Spindle, Hiteco 9 Spindle Drill Block, Yaskawa Drives, THK Linear Rails and a PC based easy to use windows controller.

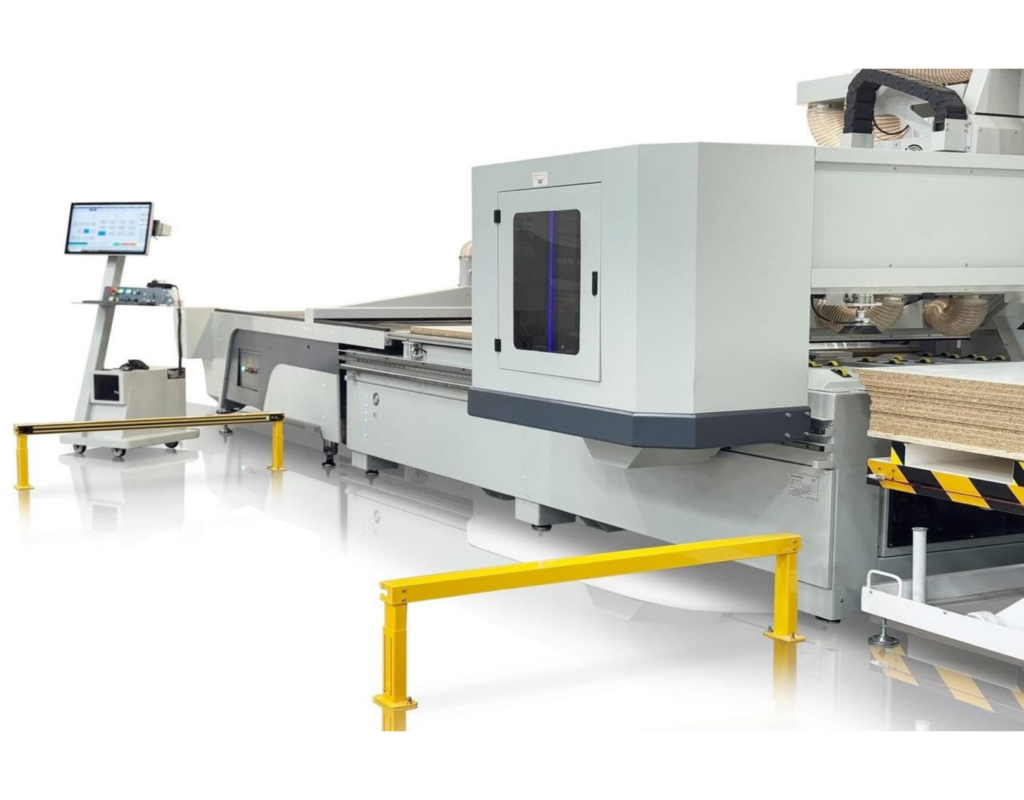

Holz G510 CNC Router
$65,900.00
Heavy Duty CNC Router
Holz G510 CNC Router
$65,900.00
Heavy Duty CNC Router
Available on backorder|Estimated Lead Time: 10 weeks
| Weight | 7500 lbs |
|---|
Technical Data
* Standalone Machine
*Load & Unload Can be added

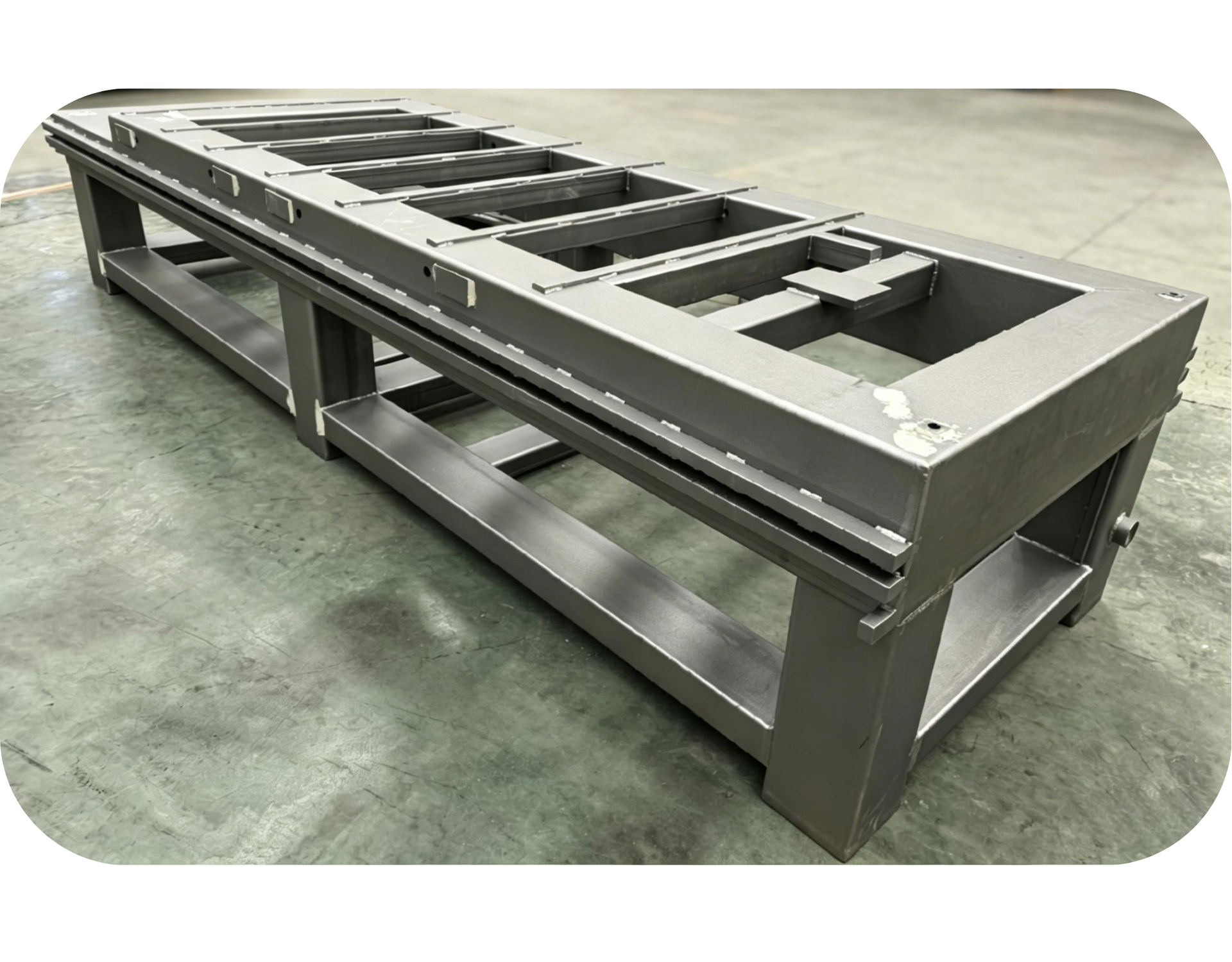

Heavy Duty Welded Steel Frame
Working Area: 1550 x 3050 x 200mm
Positioning Speed: 100m/min
Machinery accuracy: +- .05mm/m

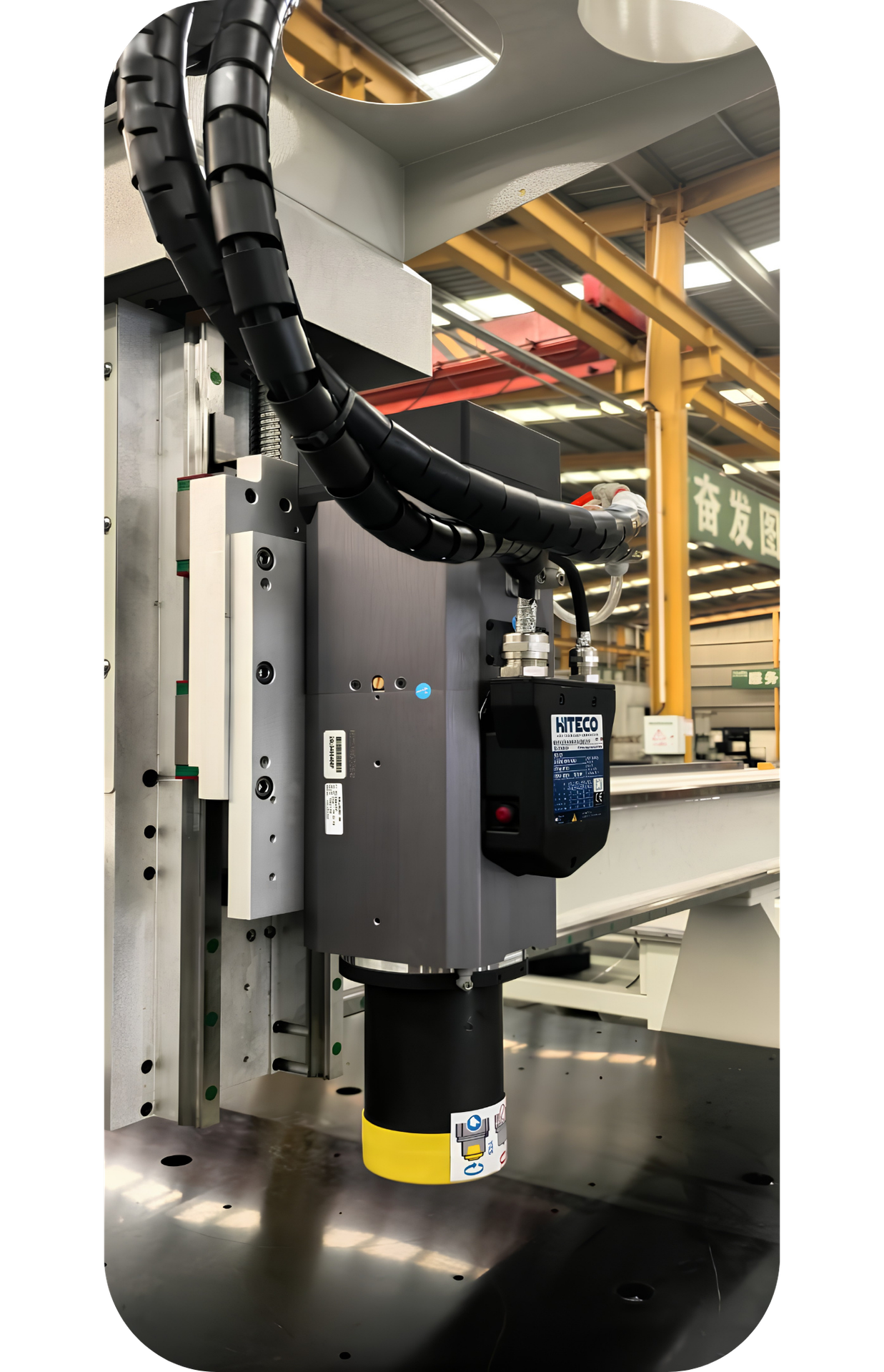

Spindle: Hiteco 12hp air cooled
HSK 63FA Tool Holder
Boring Head: HSD 5+4 Vertical Drilling
Operating System: Syntec PC Version
Tool Changer: 12 Position Carousel

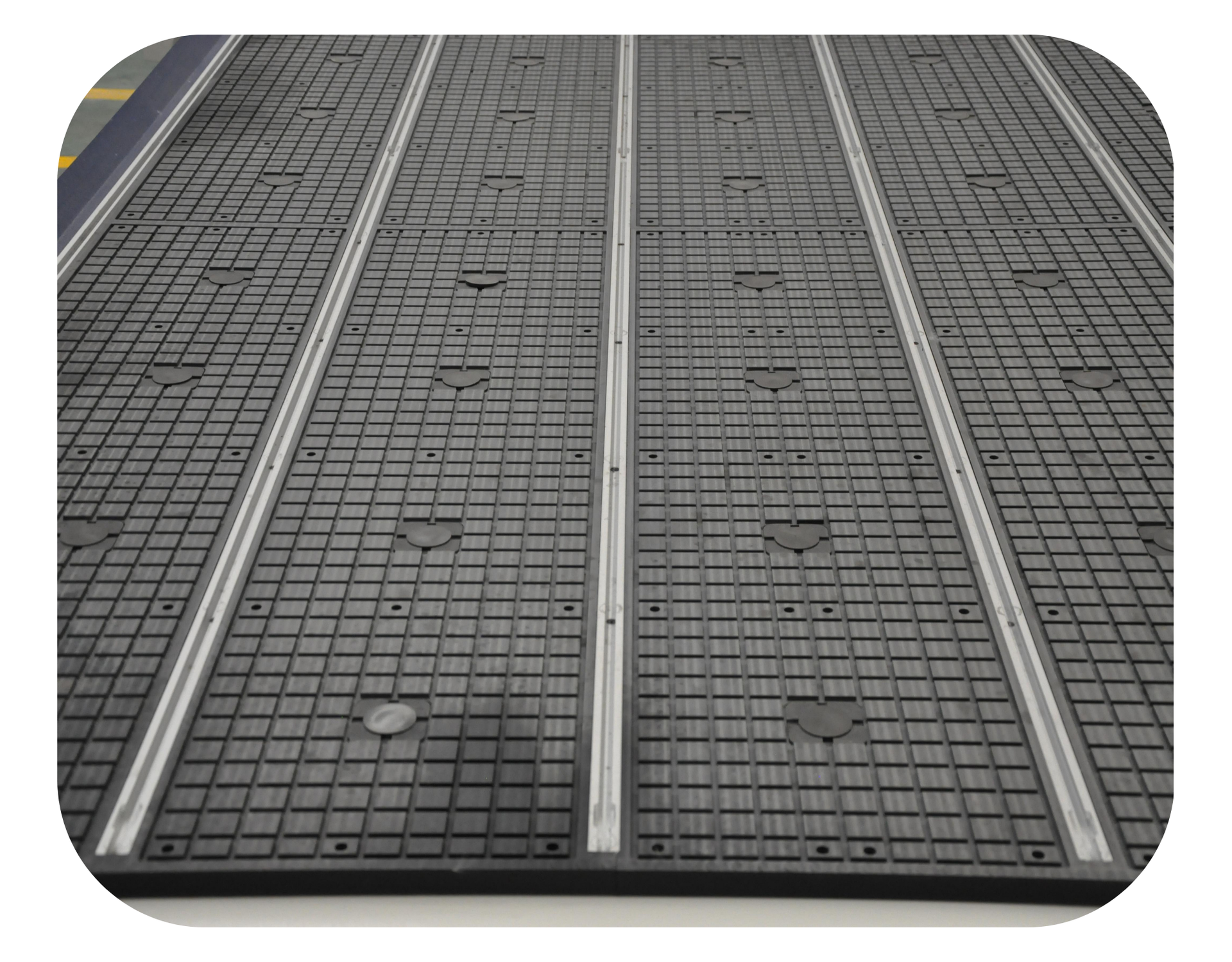

Working Table: Multi Hole Bakelite Vacuum table

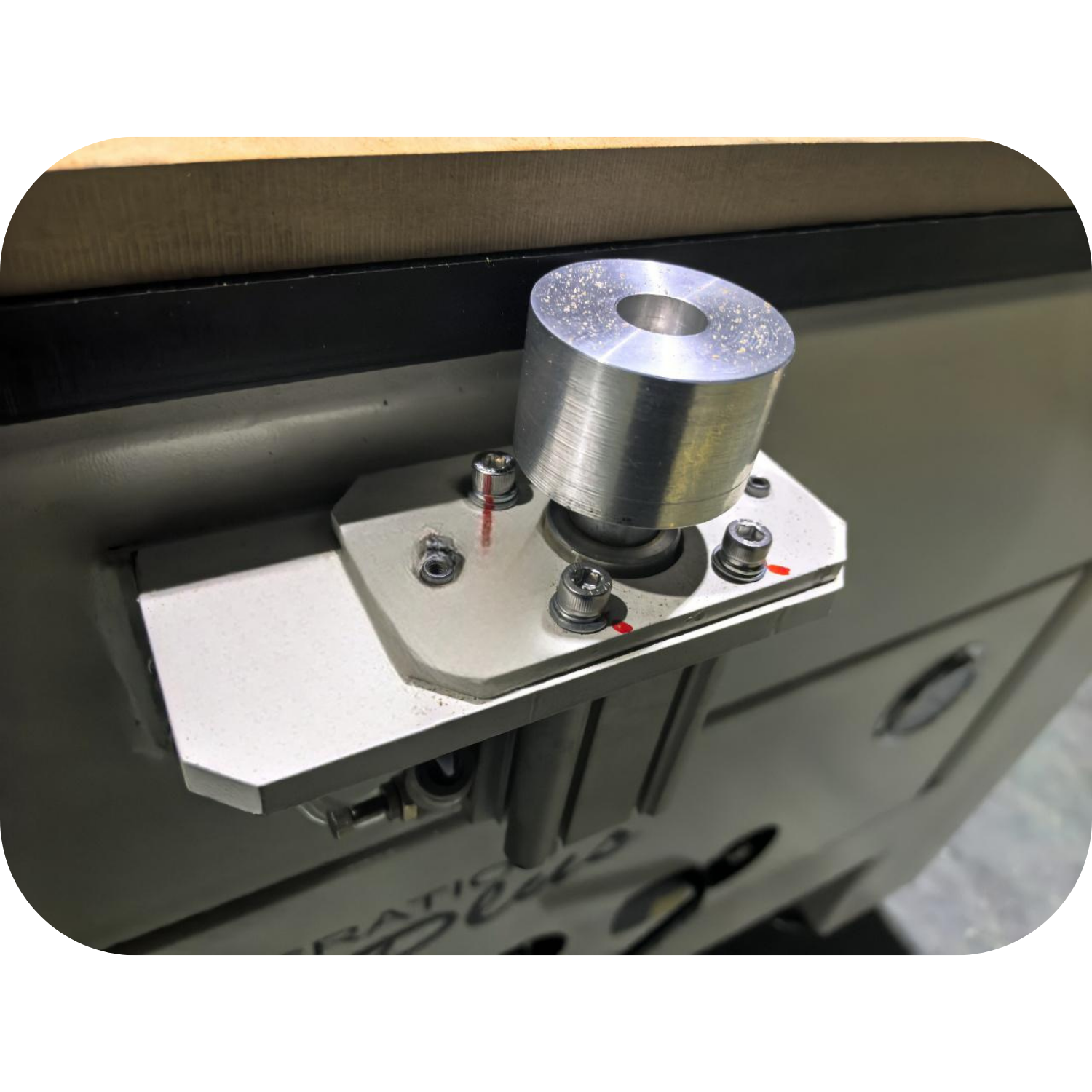

Pop up pins for material positioning

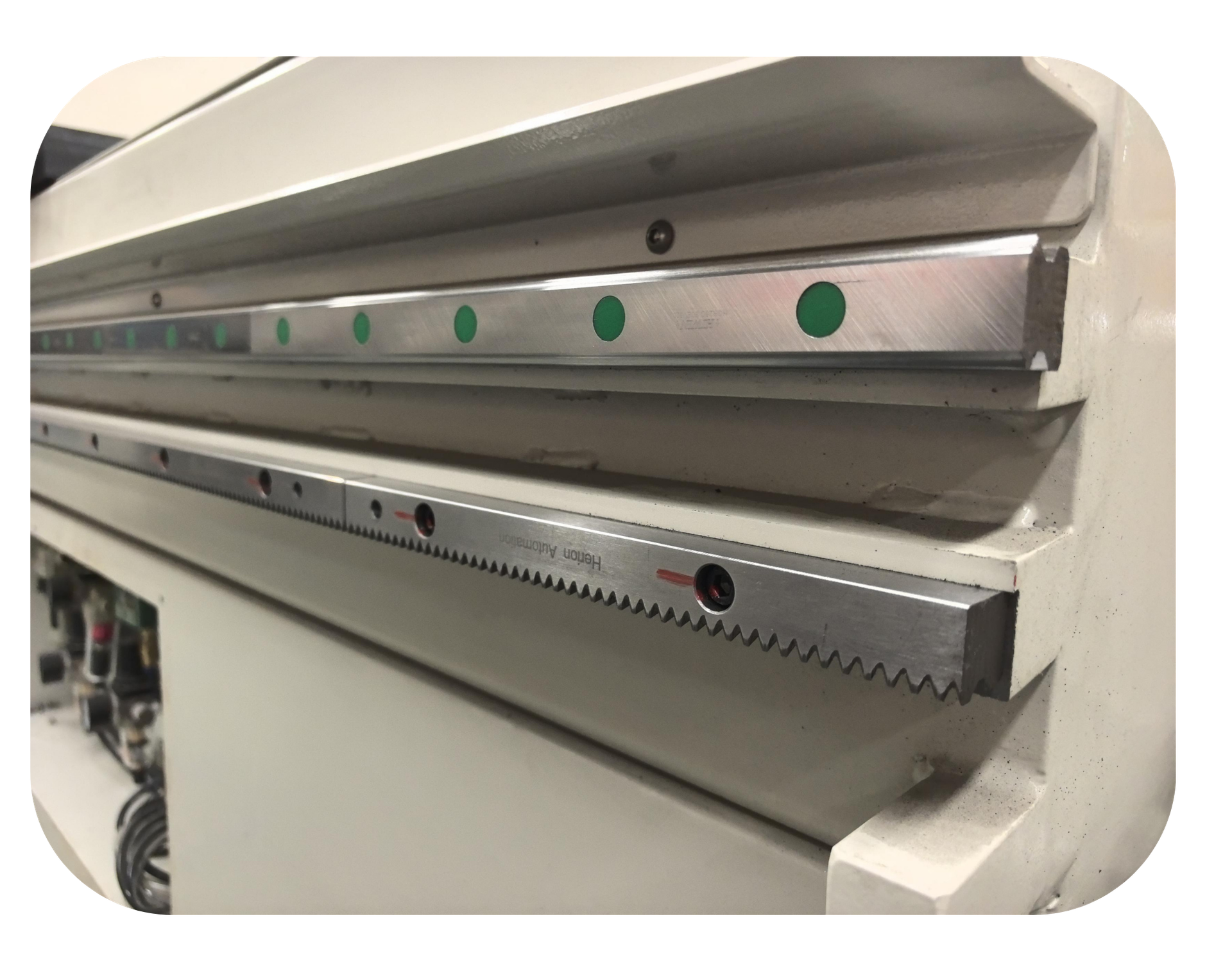

WMH Helical Rack & Pinion. THK Linear Rail
Drives: Yaskawa Servo Drive System, with Shimpo planetary reducer
Voltage: 220v, 3 phase, 60hz
-Auto Lubrication
– Enclosure
– Two VTLF 2.250 7.5hp Becker Vacuum Pumps
