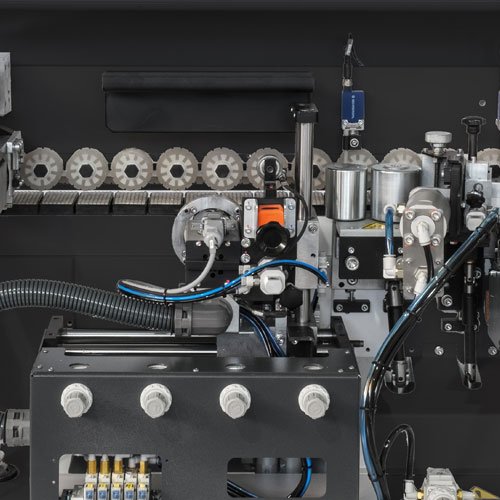

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot
system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.
Maksiwa CPC PCR Edgebander
$34,900.00
Compact Edgebander With Corner Rounding
Maksiwa CPC PCR Edgebander
$34,900.00
Compact Edgebander With Corner Rounding
| Weight | 1411 lbs |
|---|---|
| Dimensions | 111 × 30 × 57 in |
Technical Data
- Edge Tape: 0.4-3 mm
- Panel Thickness: 8-50mm
- 1 Phase 220V 60Hz
- Corner Rounding Unit
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor
- Pre-milling Unit 2 HF Motors with Diamond Cutters
- XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
- C.A.S.S – Cleaning Agent Spraying System
- Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
- Automatic feeding Speed 18 ft/min
- Conveyor Chain Feed System for optimum results.
- HF motors controlled by independent electronic converters
- Net Weight 1411 Lbs | 640 kgs
- Compact Design
- Melamine/PVC/ABS/
Installation Requirements
Air Requirement: 14 SCFM @ 87PSI
CFM Requirment:1236 CFM
Sound Rating: 80 dB
Electrical Info:1 Phase 220V 40 Amps 60 Hz
Glue Type: Granulated Hot-Melt EVA
Recommended Glue Temperature: 356°F – 410°F
Glue Pot Capacity: 1lbs
