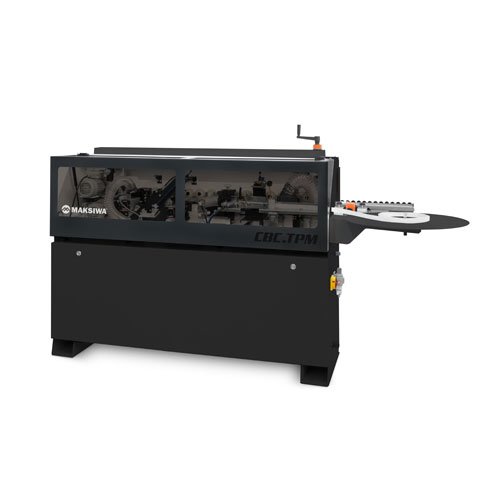

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.
Maksiwa CPC TPM
$21,900.00
Compact Edgebander with Pre Mill
Maksiwa CPC TPM
$21,900.00
Compact Edgebander with Pre Mill
| Weight | 1191 lbs |
|---|---|
| Dimensions | 91 × 30 × 57 in |
Technical Data
- Edge Tape: 0.4-2 mm
- Panel Thickness: 10-45mm
- 1 Phase 220V 60Hz
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor
- Pre-milling Unit 2 HF Motors
- Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
- Automatic feeding Speed 21 ft/min
- Net Weight 1911 Lbs | 540 kgs
- Compact Design
- Melamine/PVC/ABS/PP
Install Requirements
Air Requirement: 14 SCFM @ 87PSI
Sound Rating: 80 dB
Electrical Info: 1 Phase 220V 30 Amps 60Hz
Glue Type: Granulated Hot-Melt EVA
Recommended Glue Temperature: 356°F – 410°F
Glue Pot Capacity: 1lbs
