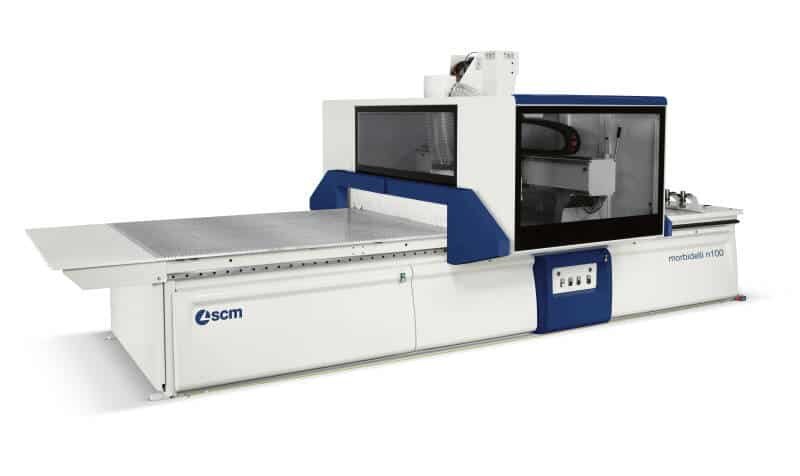

Morbidelli N100 12 CR

$119,000.00

Available on backorder

Morbidelli N100 12 CR

$119,000.00

4’x’8 Flat Table CNC

Available on backorder

Machining centre designed and engineered for woodworking.
Thanks to the unique design and PRO-SPACE safety systems directly integrated onto the machine, a reduced floor space is required and is accessible from all sides to place panels or small components on the work table.

Technical Data

SAFETY
Safety Pro-SPACE
AXES MOVEMENT
X Axis Positioning Speed 25 Meters/Min (984 Inches/Min)
Y Axis Positioning Speed 25 Meters/Min (984 Inches/Min)
Automatic Lubrication Yes
Drive System X/Y = Helical Rack & Pinion, Z = Ball Screw
Dual X-Axis Servos No
WORKTABLE
X & Y 2468 x 1255 mm (8′ x 4′)
Panel Passage 150mm (5.9″) **(100 mm Drilling)
Z Axis Stroke 250 mm (9.84″)
Number of Vacuum Zones 2 Zones
Available Work Areas A-D, E-H
Type of Work Table Alumnim Grid Table
Reference Pins Std Pins (A,D,E,H)
Vacuum Pumps One (1) Becker 300cm/h Pump
Vacuum Cups / Clamps None
ROUTER HEAD
Router Axes 3
Router Spindle HP 13 HP Router
Router Spindle Speeds 1,500-24,000 rpm
Router Cooling System Air Cooled
Aggregate-Ready No
Air Blowers for Spindle Yes
Measuring Device for Panel Thickness No
Measuring Device for Tool Length Yes
Dust Hood Manual Setting (4 Positions)
Automatic Tool Changer  TR11 + Long Tools Mgmt
DRILL UNIT/PIGGYBACK
Type of Drill Unit F12
Vertical Drills 12
Horizontal Drills 0
Drill Unit Saw Blade No
Drill Unit RPM 2,000-8,000
Drill Unit Dedicated Inverter Inverter Shared with Router
Dedicated Z2 Axis  No
Piggyback Unit None
AUTOMATION
Oflload Rake (Std, NC) Yes
Loading Cups No
Loading Table No
Offload Conveyor No
Side Fences No
Flow Direction N/A
MISCELLANEOUS
Transformer 208V, 230V, 460V
CFM Required *Estimated 3535CFM
Max Power Required *Estimated
Compressed Air Requirement *Estimated
Additional Options:  Cabinet AC
  Addtl Maestro USB Key
  Ventilation on Base

SOFTWARE/CONTROL
PC Console Eye-M PRO
OS Windows 10 – 64 bit
Pendant Tecpad
Active Active
Maestro (Basic (3+2), Nest, 3D) Basic (3+2)+ Rect Nesting
Connect Connect: 1yr Subscription
