TECHNICAL SPECIFICATIONS

Motor Horsepower 11 HP (3-Phase)
Working Width 520mm (20”)
Working Height 3.5 – 300mm (9/64” – 11.8”)
Max. Depth of Cut 8mm (5/16″)
Minimum Length of Stock 220mm (8.66”)
Cutter Head Diameter 120mm (4 3/4″)
RPM 4500
No. of knives 4
Knife Dimensions 520mm x 30mm x 3mm
Table Size 530 x 900mm (20.87” x 35.4”)
Feed Speeds 5,8,12,18 m/min (20,33,43,56 fpm)

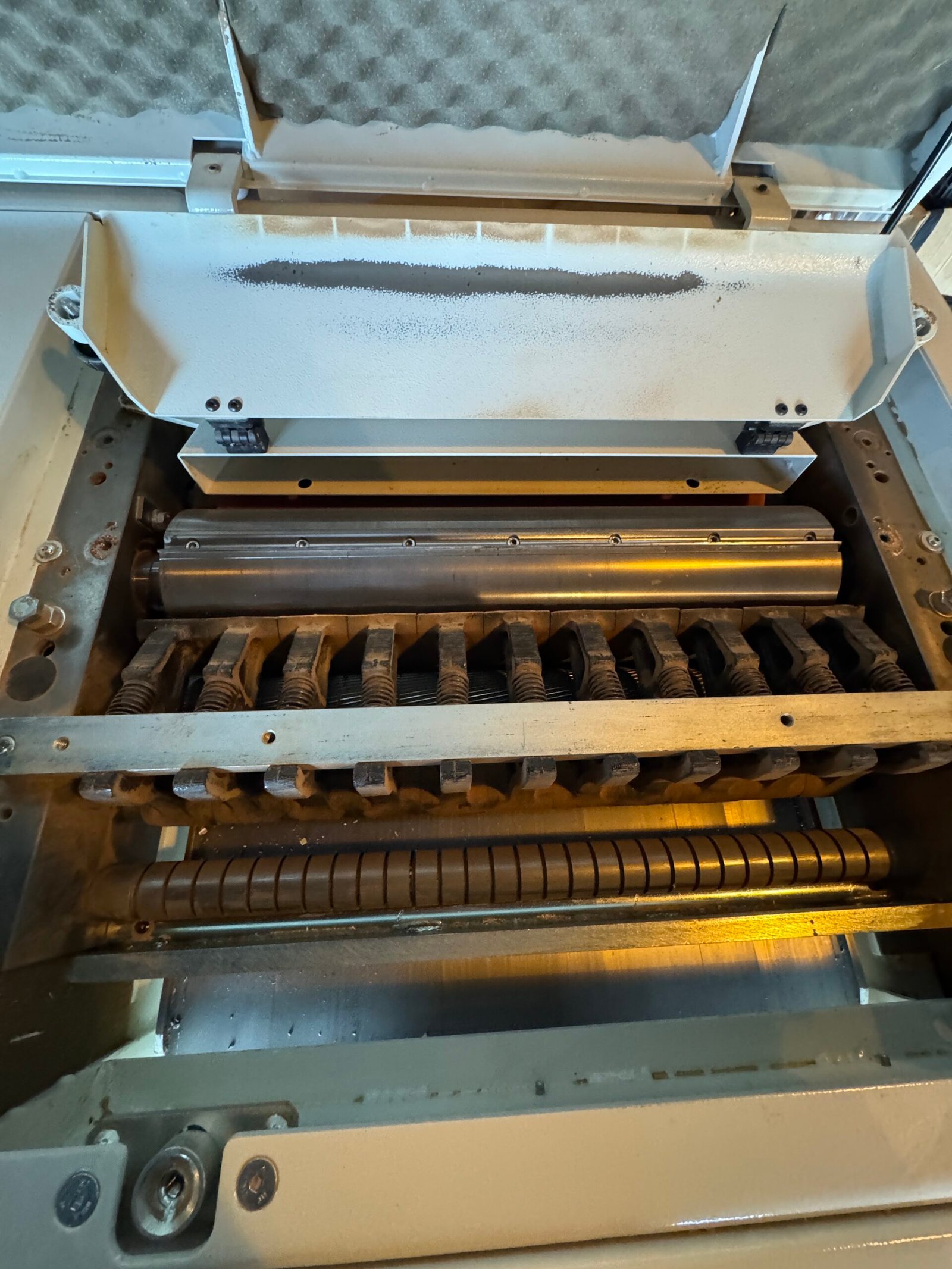

Infeed Roller Steel sectional, power driven
Outfeed Roller Rubber, power driven
Dust Hood Diameter 150mm
Overall Dimensions (L,W,H) 43″ x 40″ x 44”
Shipping Weight 905kg (2,000 lbs)
Net Weight 860 kg (1,890 lbs)
Electrical Requirements 230 volt
Dust Extraction 980 cfm
