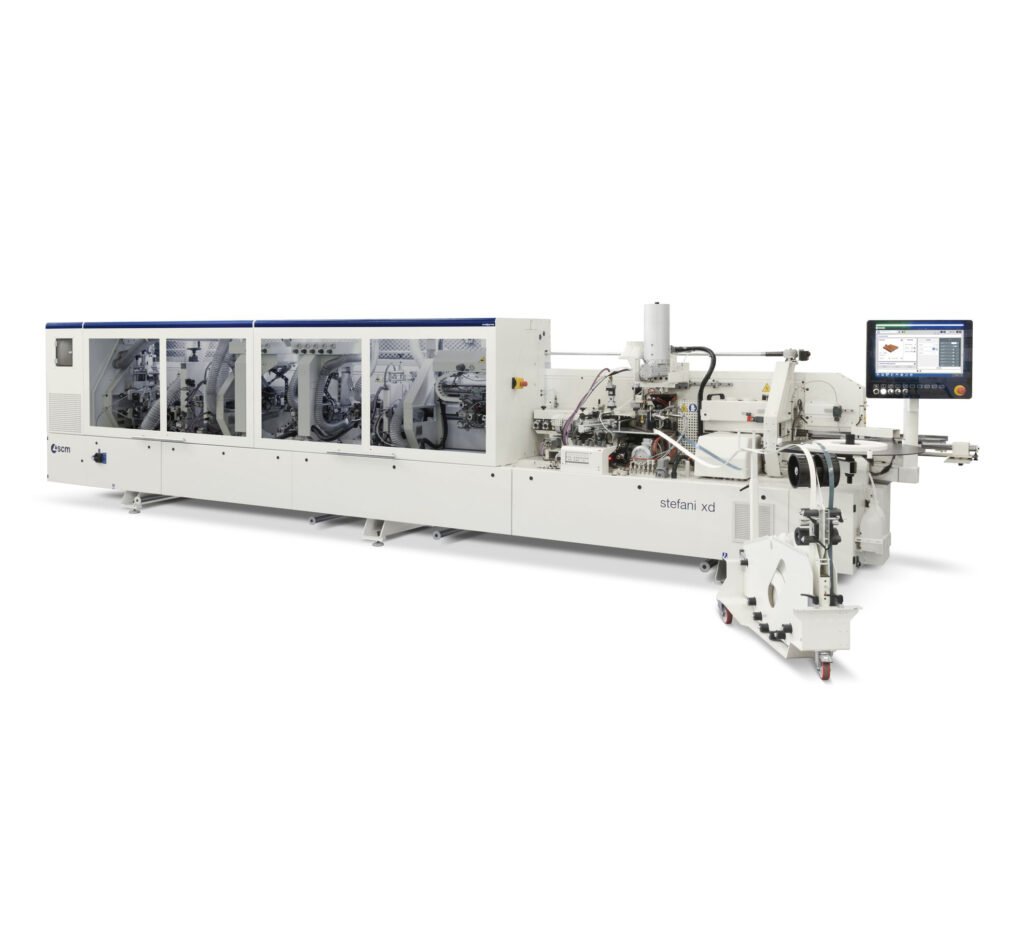

About this machine:
Tech Specs:
| Working Height | 10-60 mm (3/8″ – 2 3/8″) |
| Edge Thickness | 0.4-22 mm (7/8″) |
| Max. track speed (depending on edge thickness) | 12-25 m/min (40-82 FPM) |
| Feed Motor Horsepower | 4 kW |
| Minimum Panel Length: | 140mm (5 1/2”)
220mm ( 8 5/8”) with Corner rounding |
| Minimum Panel Spacing | 630mm (24.5/8”) |
| Min. coil length | 230mm |
| Min. strips length (Solid wood and HPL) | 250mm |
| Pre-Mill Unit | |
| Motor Power | 4 kW |
| Rotation | 12,000 RPM |
| End Trimming Station: | |
| Motor Power | 0.8 kW ea. |
| RPM | 12,000 RPM |
| Automatic blade tilt | 0-22 degrees |
| Edge Trimming Unit (1st): | |
| Motor Power | 1.84 kW |
| RPM | 12,000 RPM |
| Tilting | 0-30 |
| Edge Trimming Unit (2ndt): | |
| Motor Power | 1.1 kW |
| Tilt | 20 degrees fixed |
| Cutting Tools, straight knife inserts (4) | 70mm x 12mm |
| 1 and 3 mm radius | |
| Corner Rounding Unit: | |
| Motor Power | .35 kW ea. (4 motors) |
| RPM | 12,000 RPM |
| 1 and 3mm radius | |
| Profile Scraping Unit: | |
| Knife Radius | 1 and 3mm radius |
| Glue Scraping Unit: | |
| Knife Radius | Straight |
| Buffing Unit: | |
| Motor Power | 0.29 kW |
| RPM | 1,500 RPM |
| Brush Dimensions | 150mm x 50mm x 33mm |
| Pneumatic Operating Pressure | 90 PSI |
| Machine Weight: | 12,368lbs. |
| Electrical: | 125 amps @ 230v (208/230/460 Multi Tap Transformer) |
| Dust: | 3,500 cfm |
| Dimensions (LxWxH): | 344” x 107” x 68” |
