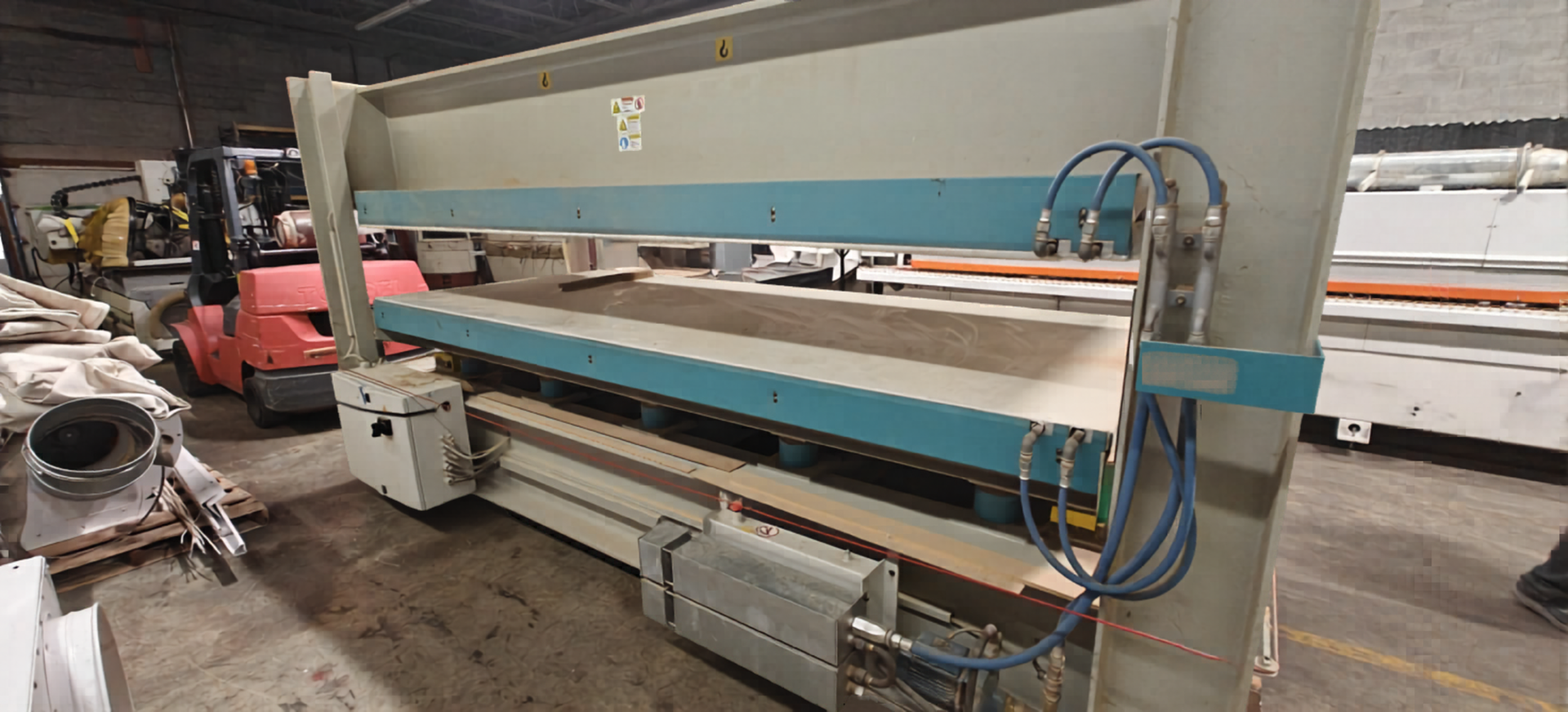

2007 Tiger Gamma T-190 Hot Press (Italpresse XL/10)
Italpresse Model XL/10 38-16 PMBO Hydraulic Hot Press
Platen dimensions: 3,800 x 1,600 mm (149 x 63 in.)
Number of daylights: 1
Total cylinder stroke: 400 mm (15-3/4 in.)
Number of pressing cylinders: 10
Diameter of pressing cylinders: 85mm each
Total thrust: 190 metric tons (418,878 lbs)
Max. laminating pressure on 80% of platen area 4.17 kg/cm2 (60 psi)
Max. laminating pressure on 100% of platen area: 3.34kg/cm2 (48 psi)
Hydraulic pump: 3 kw (4 hp)
Boiler power: 36 kw
Maximum platen temperature: 120C (248F)
Torsion free, heavy-duty press frame fabricated from welded structural steel

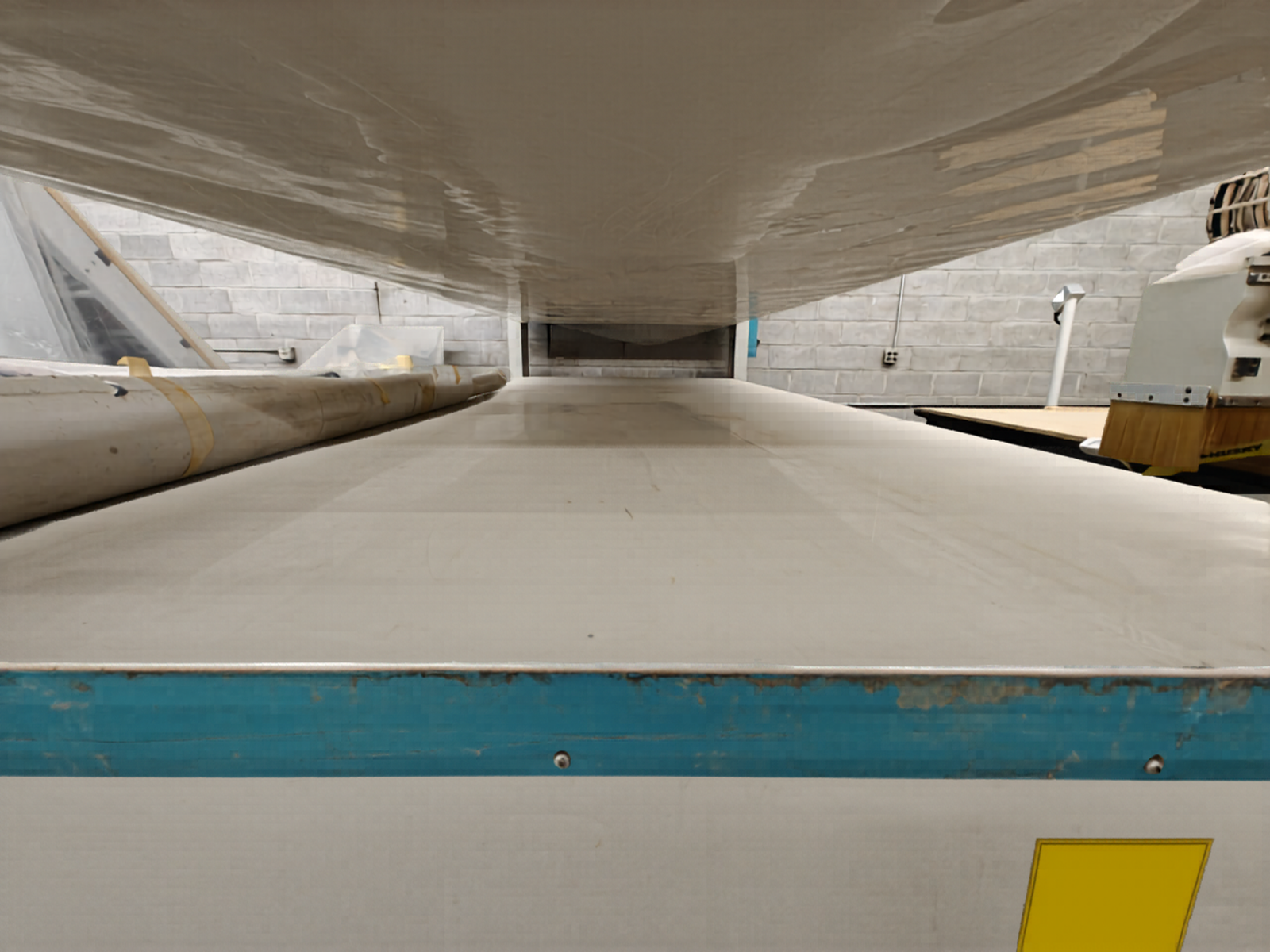

Massive, solid steel platens drilled for circulation of thermal oil – superior heat characteristics!
Platens covered with easy to replace, glue resistant Mylar film Self-lubricating corner guides and rack and pinion system to maintain parallelism of the press platens during opening and closing
Automatic regeneration of pressure during press cycle
Electrical resistance thermal oil boiler, complete with circulation pump, expansion tank, thermostatic controls, and automatic startup timer
Digital pressing timer with automatic initiation of press opening and panel unloading
As standard this model comes with PLC control and diagnostics for general fault finding.
Features:
– Computerised control of the pressing functions
– Pressing timer with automatic opening & manual override
– Digital display & control of working pressure
– Timer for startup in morning
– Diagnostics with digital display
– Automatic reset of hydraulic pressure
7-day auto startup and shut down timer for the thermal oil boiler PLC I/O status monitoring for troubleshooting
Display of fault and warning messages
EFC System – sensors to detect deflection of the lower platen and stop the buildup of pressure in case of improper positioning of the panels
Dual cycle-start buttons requiring two hands to initiate cycle for safety
Safety pull rope on all four sides with emergency stop switch
Safety locking plates to secure the mobile lower platen while performing maintenance on the hydraulic system
UL approved electrical components
