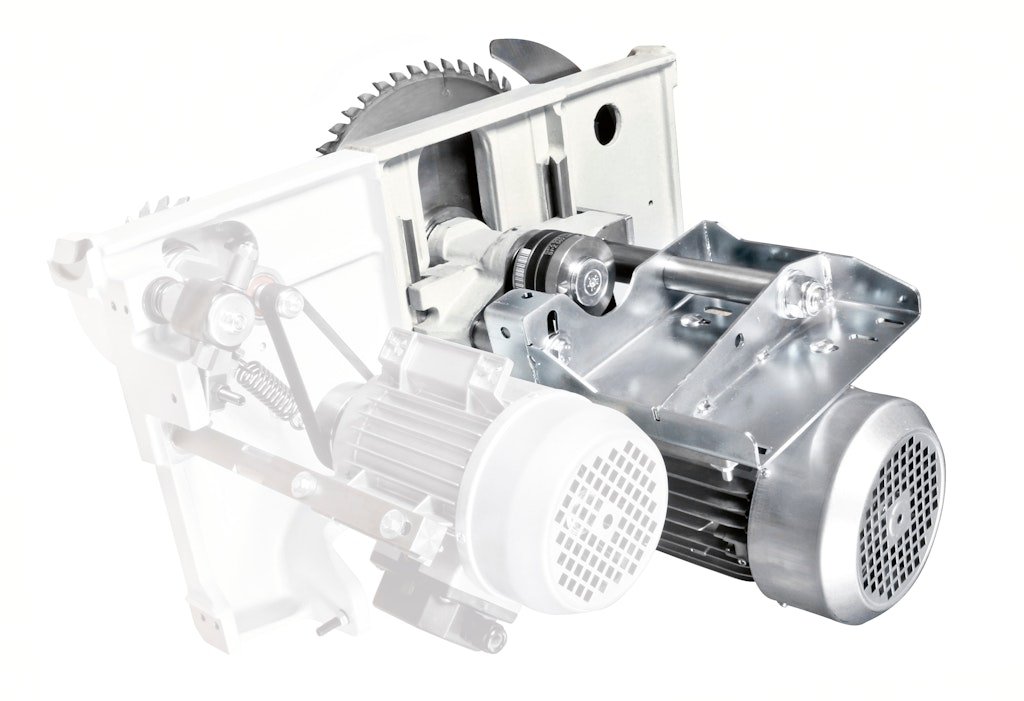

The ideal 10.5ft single-phase sliding table saw for small cabinet shops or serious hobbyists. Affordable, without compromising quality. Maximum precision and stability with the blades lifting by means of “dove-tail” guides system and the saw unit tilting by means of two, large, lateral trunnions.

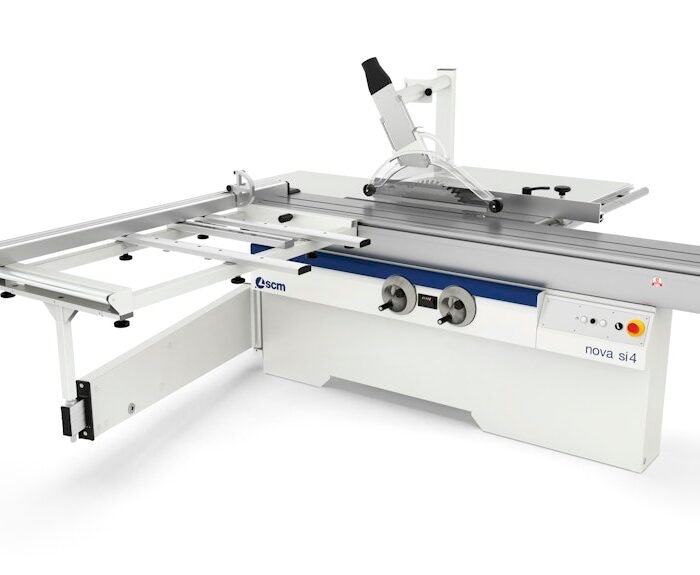

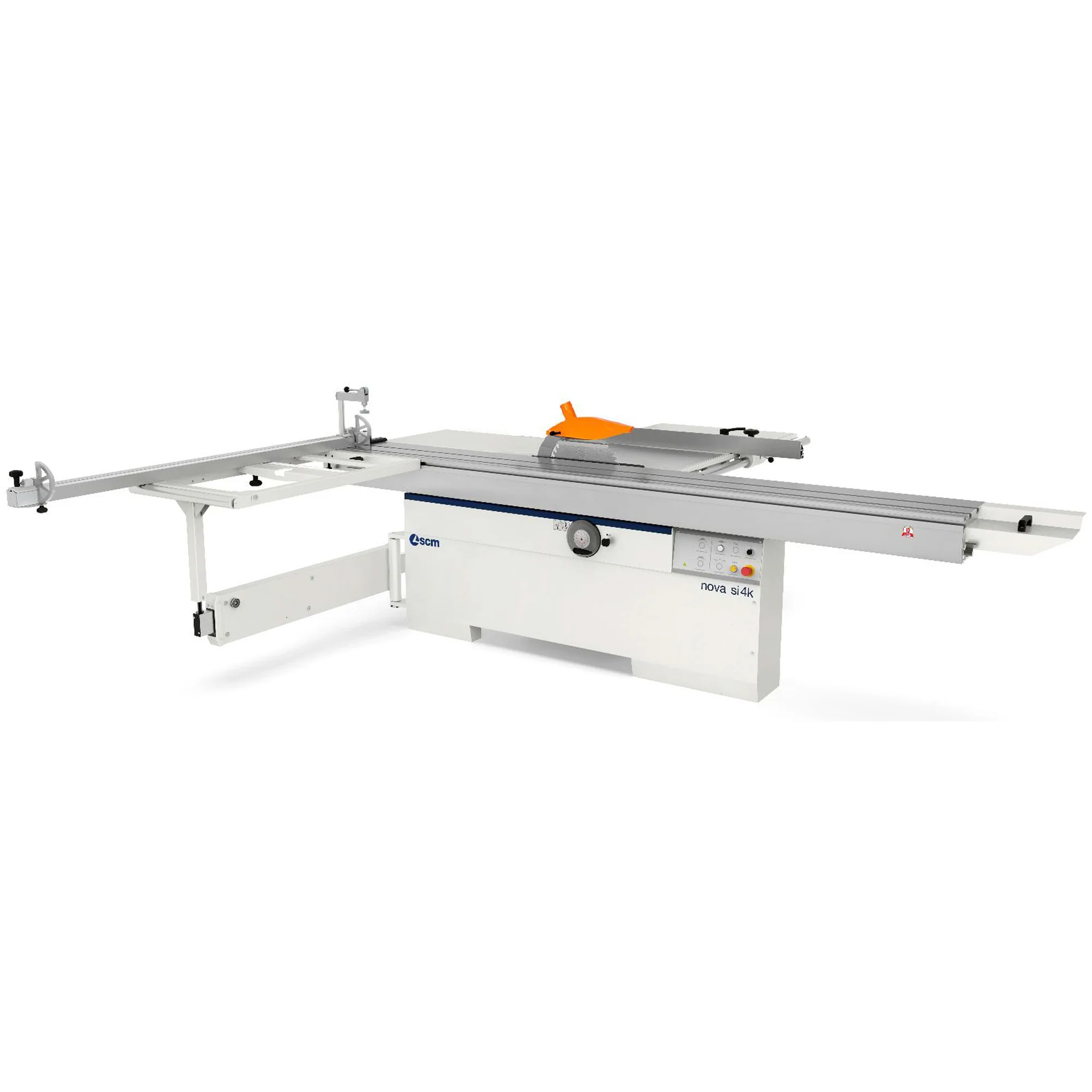

The Nova SI 4K-315 Sliding Table Saw is designed to optimize performance and adapt to the needs of professional shops everywhere. This saw’s robust features and components make it ideal for businesses and demanding workshops that process large amounts of sheet goods. Equipped with a 5.5HP motor, independent scoring unit, and 10.5 ft. stroke, the Nova SI 4K-315 is built to handle a wide variety of materials, from plywood to melamine to OSB.
Technical Data
Squaring stroke: 10.5′ (3,200mm)
Worktable dimensions: 37″ x 22″ (940 x 560mm)
Max. saw blade (w/scoring blade installed): 12.37″ (315mm)
Blade arbor: 1.18″ (30mm)
Scoring blade diameter: 4.7″ (120mm)
Scoring blade arbor: 0.79″ (20mm)
Main blade speed: 4,000 RPM
Scoring blade speed: 9,200 RPM
Blade tilting: 90° to 45°
Max. thickness (at 90°): 3.87″ (100mm)
Max. thickness (at 45°): 2.75″ (71mm)
Rip capacity on parallel fence: 50″ (1,270mm)
Dust outlet diameter: 4.69″ (120mm)
Min. dust extraction required: 696 CFM
Approx. shipping dimensions (L x W x H): 132″ x 43″ x 46″
Approx. shipping weight: 1,409 lbs.
Main blade motor: 5.5HP (4 kW)
Scoring blade motor: 1HP (0.75 kW)
*Electrical requirements: 220V, single-phase, 28 A
Standard Equipment

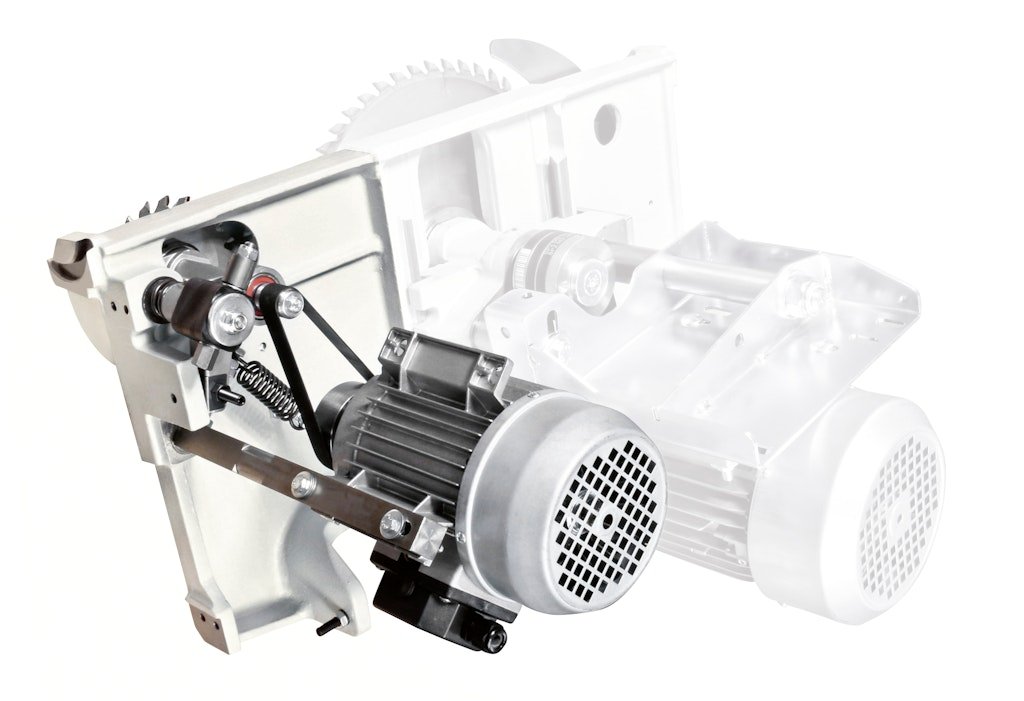

Along with a maximum blade capacity of 12.37” (315mm), the Nova SI 4K-315 also features a scoring unit that accepts a 4.7” (120mm) scoring blade. The scoring blade makes a preliminary cut designed to give the main blade a cleaner cutting path. This prevents tear-out and is excellent for smooth, chip-free cuts in melamine and veneered plywood panels. Adjusting the scoring blade can be done via the handwheel on the front of the machine.
Smooth cuts and exact accuracy are paramount on the Nova SI 4K-315. To ensure maximum accuracy and effortless movement, the carriage guide rails are secured using a specialized aluminum riveting process instead of adhesive. This eliminates the potential for glue thickness variations, resulting in smoother travel and consistently precise performance. An integrated track system allows the user to lock the table in at any position.
Panel loading has never been easier thanks to the 47.2” x 25.59” (1,200 x 650mm) squaring frame that features a steel idle roller to facilitate infeed and outfeed operations. This frame boasts an extendable squaring fence with two reversible flip stops and a metric/imperial ruler tilted towards the operator for convenient measuring.
All Nova Saws come with a 10-year warranty on the sliding table.
Utilize SCM’s Thundercut App to get the most out of the Nova SI 4K-315. This app is compatible with iOS and Android operating systems, and allows you to:
Warranty
Warranty
SCM warrants that the machinery will be free of defects in workmanship and materials for a period of one (1)
year beginning on the date the machinery is accepted by the customer. This warranty includes belts, bearings,
and common electrical parts, which carry a six-month warranty. This warranty does not include parts consumed
during normal operation (wearable items) or maintenance required in the ordinary course of operation.
For MINIMAX and FORMULA brand products, the warranty does not include labor and logistics costs
incurred for repairs.
The warranty does not include parts consumed during normal operation (wearable items), working units, or
maintenance required in the ordinary course of operation. SCM shall warrant any replacement spare parts and
accessories installed pursuant to the warranty for the period of ninety (90) days
