SCM Nova SI 4

nova si 4 is the circular saw developed by SCM for the advanced joinery that combines high performance and maximum versatility to meet the operator’s specific needs.

The distinctive feature is in fact the maximum configurability thanks to the new options.
SCM nova si 4 guarantees maximum cut quality over time.

Weight	1500 lbs
Brand	SCM

Standard Equipment

STANDARD EQUIPMENT

Anodized aluminum alloy carriage sliding on mechanical fixed hardened steel guides
It can lock at any position.
10 years warranty for the carriage sliding system.
Overhead saw guard with incorporated dust extraction

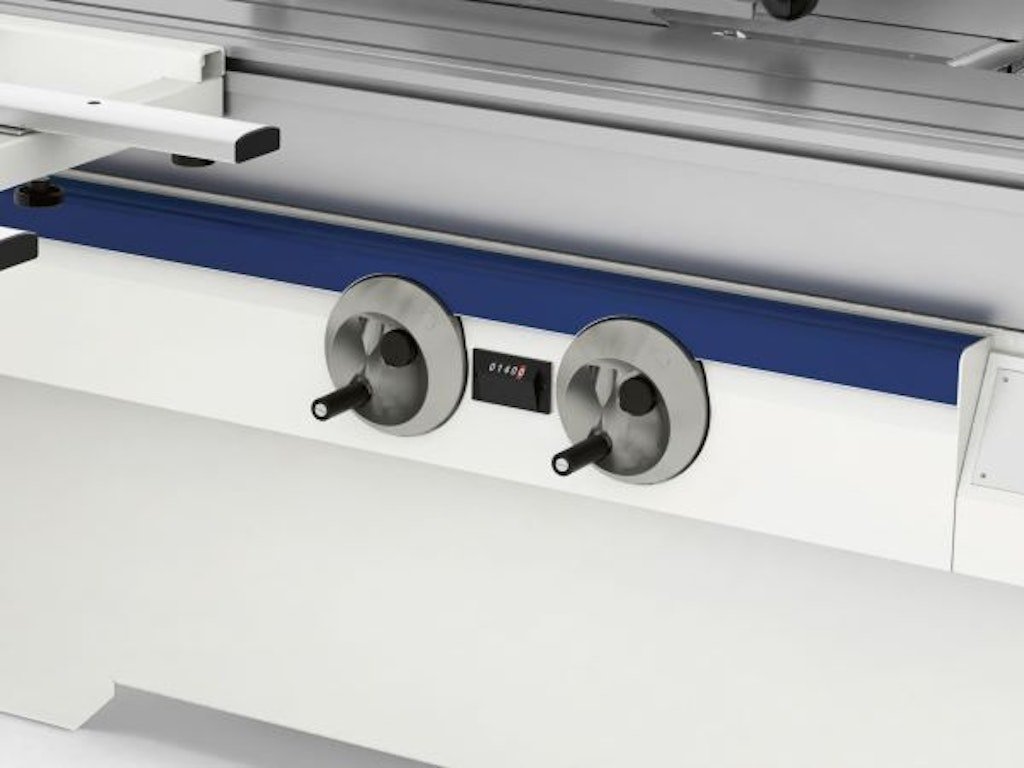

Lifting and tilting of saw unit by means of frontal hand wheels.
Mechanical readout of blade group tilt
Independent powered scoring unit, external setting up and stops for a quick re-positioning of the blade
Scoring unit adjustment: vertical and horizontal adjustments are carried out by user-friendly mechanical levers with precise and smooth movements. The useful mechanical stops allow to immediately find the set position. These adjustments can be easily operated from the front of the machine.
Squaring frame (1530×680 mm) with:
- telescopic swinging arm support
- idle roller to facilitate the panel loading/unloading

Telescopic squaring fence with:
- 2 flip-over stops with lens
- metric/imperial rule tilted towards the operator
- Tilting up to 45°

Outfeed table extensions
Manual rip fence with position reading on metric/imperial rule and micrometric adjustment, sliding on a rectified steel bar (45 mm diameter).
SCM Thundercut: Optimizer/Sequencer APP for iPadOS and Android tablets
It can be activated with the QR code included with the machine. The App allows you to:
- manage your machines and material inventory
- create, edit or import projects; import cutting lists (“cpout” file format)
- Optimize and personalize your cutting lists
- Get guided step by step cut instructions, thanks to the intuitive 3D Sequencer
- print labels with bar code (Bluetooth connectivity – for compatible label printers)

SAFETY/PROTECTIONS

Emergency pushbutton located on the front machine side
Overload protection
Overhead saw guard with incorporated dust extraction, 80 mm outlet diameter
Automatic brake on main blade
Main power switch can be locked in the off position with a padlock
Auxiliary low voltage circuit (110 voltage)
UL/CSA rated electrical components, including cables

Technical Specs

Main blade	Scoring blade
Motor power	8 HP – 6 kW	2 HP – 1.5 kW
Blade speed	3700 rpm	8500 rpm
Max. blade diameter	400 mm (15.75”)	120 mm (4.72”)
Arbor size	30 mm (1.18”)	20 mm (0.79”)
Diameters to be used simultaneously	400 x 120 mm (15.75” x 4.72”)
Blade tilting	90° ÷ 46°
Max. cutting height at 90°/45° with 400 mm blade	140 / 99 mm (5.5” / 3.87”)
Max. squaring capacity	3200 mm x 3200 mm (10.5’ x 10.5’)
Ripping capacity on parallel fence	1270 mm (50”)
Worktable dimensions	1040 x 630 mm (40.94″ x 24.75″)
Installation requirements
Nominal extraction air consumption	1200 m3/h (696 CFM)
Air exhaust speed	20 m/s (66 ft/s)
Exhaust outlets diameter: Frame outlet Overheard protection	120 mm (4.69”) 80 mm (3.12”)
Electrical requirements subject to change; must be verified prior to installation	220 V – 60 Hz – 3 phase – 27 A
